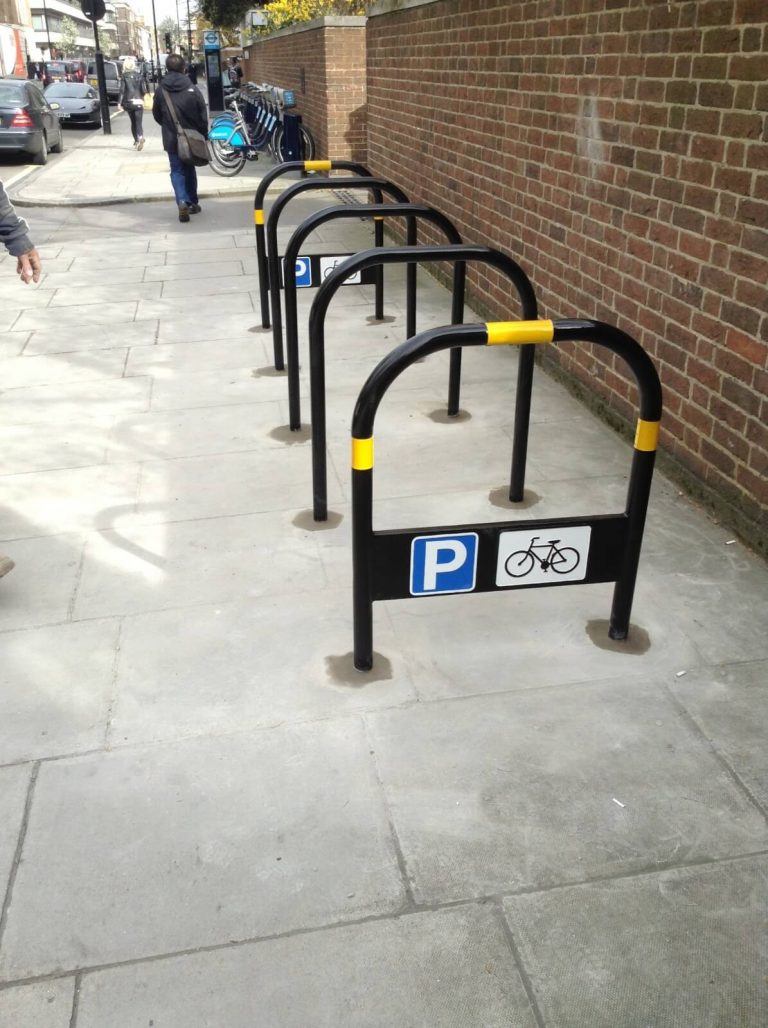

Sheffield stands with Sinage

Description

Specification

• Available ragged for casting in to the ground or flanged for bolting down.
• 48.3mm overall diameter.
• Wall thickness 3.25mm.
• Ragged versions 300mm below ground.
• Flanged versions require 3 n/o 12mm bolts per flange
• Height above ground 750mm, length overall 750m

Installation

Mild steel and stainless steel flanged versions, a suitable surface, preferably concrete, should already exist for drilling into and bolting down. For ragged ends a concrete foundation approx. 300mm cube is recommended, depending on ground conditions.
When positioned adjacent to one another, stands should be around 800mm apart and around 450mm from any wall or other obstruction.

• Bolts are available extra.
• Mild steel galvanised to BS EN ISO 1461 (1999).
• Stainless steel is grade 304 as standard.
• Grade 316 stainless as an Option
